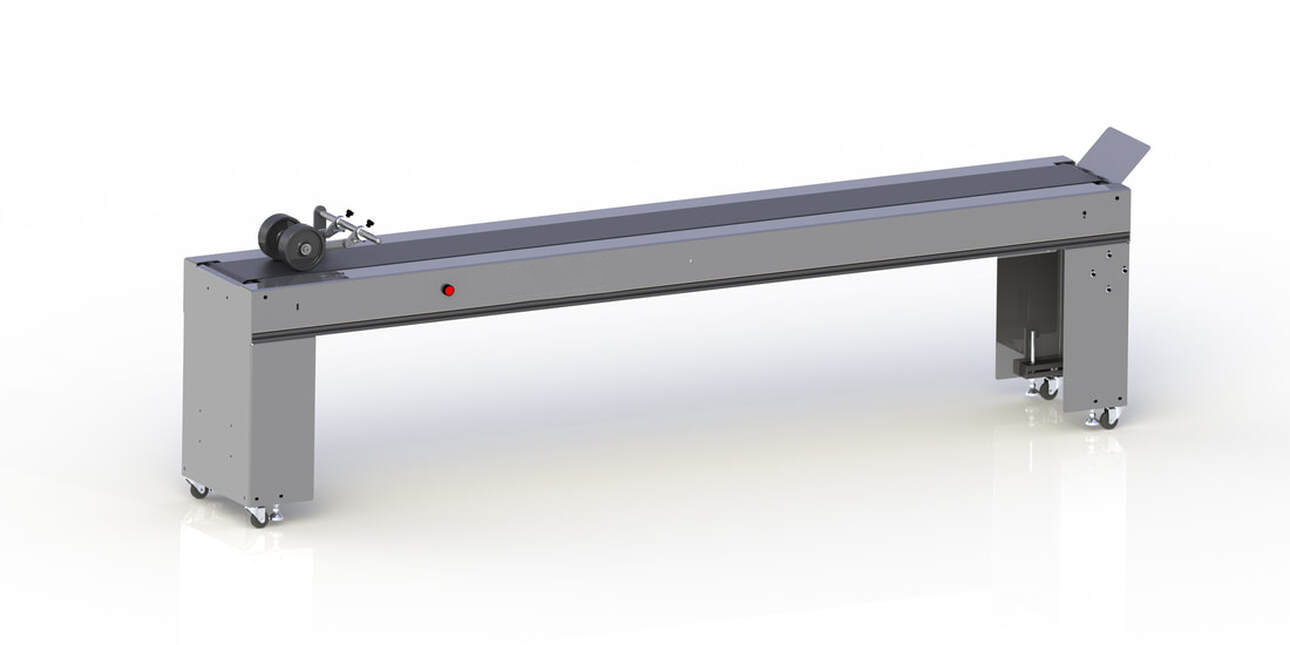

Linemods CNV 9

9' Conveyor

Premium conveyor series for general product accumulation / shingle stacking / sorting / batching - for use with VMC and Stealth lineup.

Attributes:

• Stepper drive
• Maintenance free
• Self-tensioning
• Plugs directly into CNV receptacle on most Linemods brand machinery

Optional Features:

• Speed shift controls (integral hardware/software options)

Optional Accessories:

• Start, stop, feed and speed pendant
• Right angle ball register – for left/right angle operation
• Batching head – Staggered shingle
• Light tower
• Standalone 110v power and I/O cables

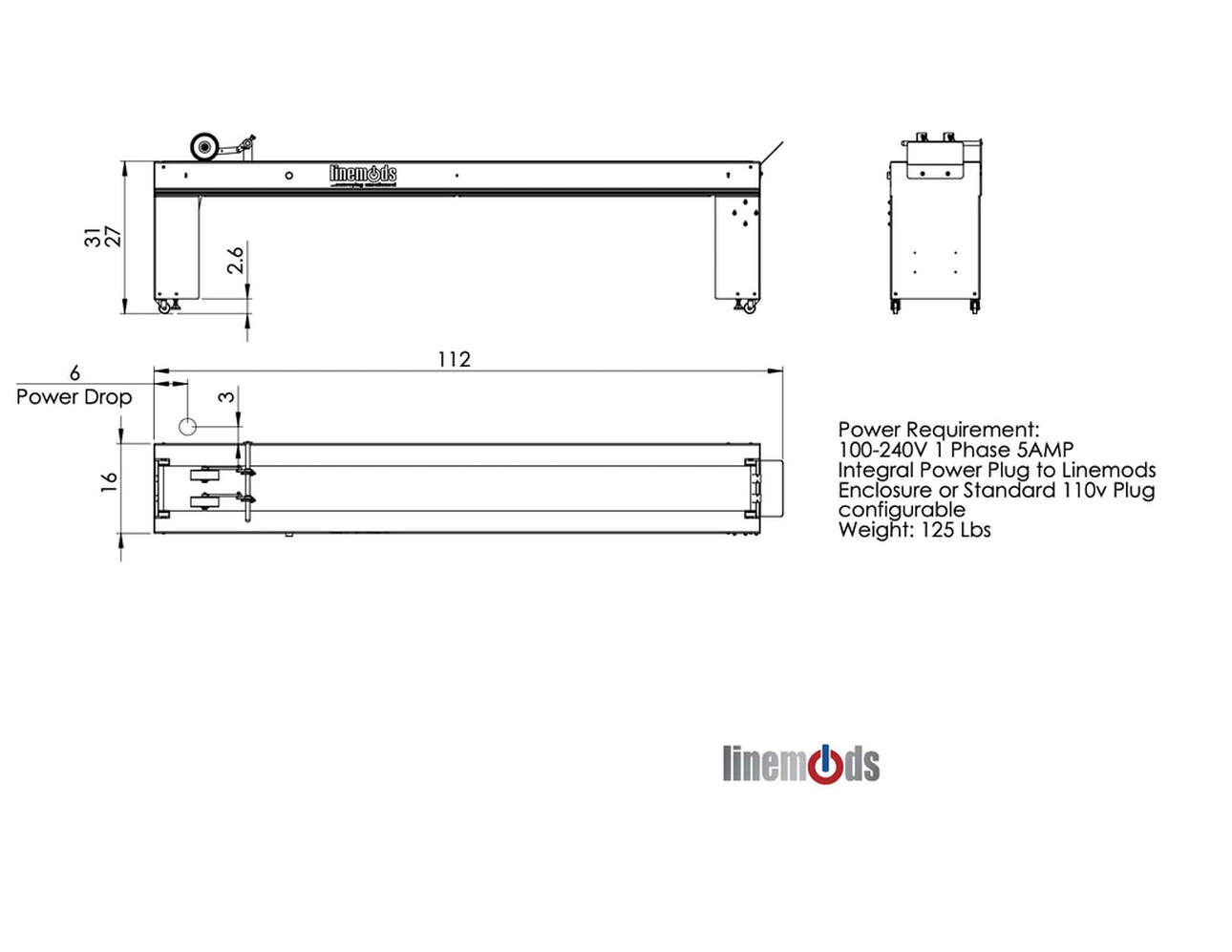

Product Capacity:

• Width: 16” width capacity x 9’ long
• ​Max Speed: 120’ minute
• ​Gross weight: 125 lbs
• Electrical: 100-240v 1 Ph / 5amps ​(configurable)
